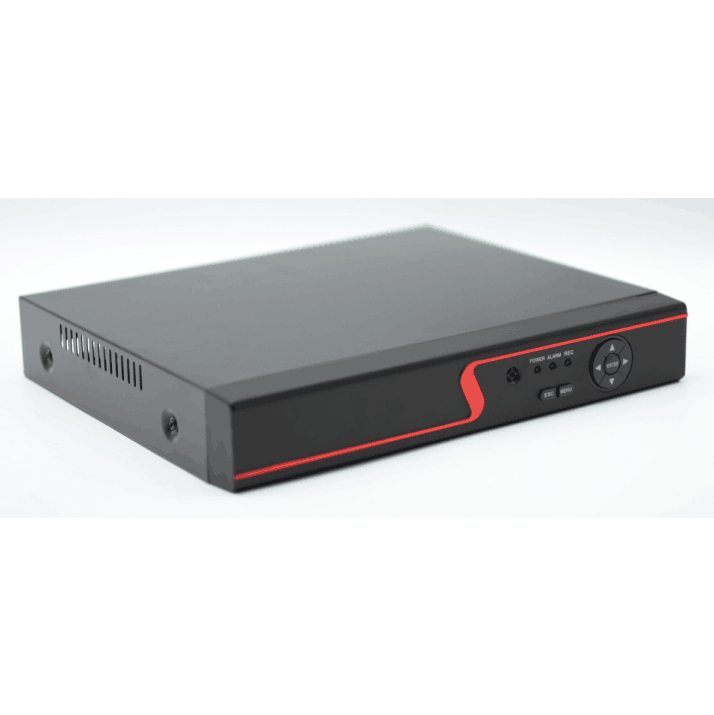

Model
|
4CH POE NVR
|
8CH POENVR
|
|
System
|
Main processor
|
Hi3520D
|
|
Operating System
|
Embedded Linux
|
|
System resources
|
Simultaneous multi-channel real-time recording, playback, network operation, USB backup
|
|
Interface
|
Operator interface
|
16-bit true color graphic menu operation interface, support mouse operation
|
|
Preview
|
1/4/8
|
1/4/8/12
|
|
Video
|
Video input (IP)
|
4*1080P/8*960P/8*D1
|
8、4*1080P/12*960P/8、4*720P
|
|
Access bandwidth
|
24Mbps
|
48Mbps
|
|
Forwarding bandwidth
|
24Mbps
|
48Mbps
|
|
Video compression
|
H.264
|
|
Display quality
|
Max 1920*1080
|
|
Playback quality
|
1080P/960P/D1
|
1080P/960P/720P
|
|
Decode
|
1*1080P/1*960P/4*D1
|
2*1080P/4*960P/4*720P
|
|
Motion detection
|
Support(depend on camera)
|
|
Audio
|
Audio compression
|
G.711A
|
|
Intercom
|
Unsupport
|
|
record &play back
|
Recording mode
|
Manual>Alarm>Dynamic Detection>Timing
|
|
Local payback
|
1*1080P/1*960P/4*D1
|
2*1080P/4*960P/4*720P
|
|
Search mode
|
Search by Time/Calendar/Event/Channel
|
|
Record storage
|
HDD、Network
|
|
Backup mode
|
Network backup, USB hard disk, USB burner, SATA burner
|
|
External interface
|
Video output
|
1ch VGA，1ch HDMI HD output
|
|
Audio I/O
|
0/0
|
|
Alarm I/O
|
0/0
|
|
Network interface
|
The expansion board provides a network connection
|
|
USB interface
|
2*USB2.0 ports
|
|
HDD
|
1 SATA(Up to 8TB for each disk)
|
|
ESATA
|
No
|
|
Serial interface
|
No
|
|
Other
|
ONVIF
|
Support
|
|
Power supply
|
Expansion board 48V power supply
|
|
Power Consumption
|
<10W(Without HDD)
|
